RM-C
Drive-and-control Integrated Controller

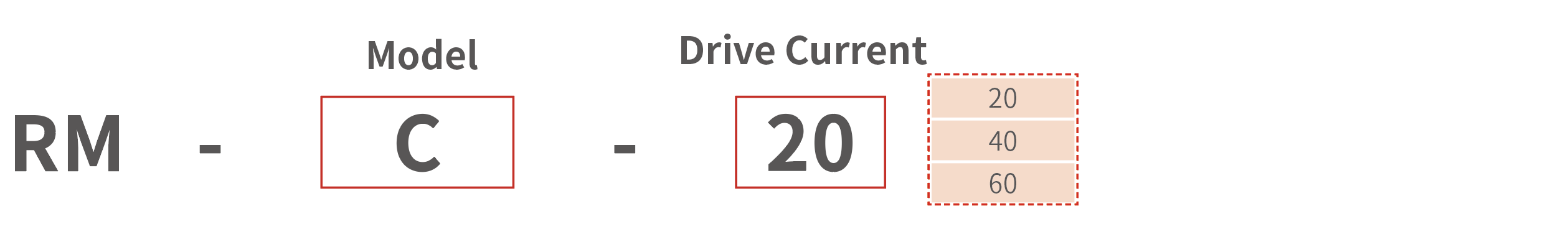

Model Guide
Product Specifications
RM-C
Drive-and-control Integrated Controller
| Product Image |  | | |
|---|---|---|---|
| Model | RM-C-A | RM-C-A | RM-C-A |
| A | 20 | 40 | 60 |
| Drive Current | 2A | 4A | 6A |
| Rated Voltage | DC 24V ±10% | DC 24V ±10% | DC 24V ±10% |
| I/O Control | Support | Support | Support |
| Pulse Control | Support | Support | Support |
| Bus Control | Modbus RTU | Modbus RTU | Modbus RTU |
| Controlled Axes | Single-axis | Single-axis | Single-axis |
| I/O Interface | Optocoupler isolation 16 IN / 16 OUT (NPN) Supports PNP, NPN | ||
| Max.input Pulse Frequency | Max.200 KPPS(24V) / Max.500 KPPS(5V) | Max.200 KPPS(24V) / Max.500 KPPS(5V) | Max.200 KPPS(24V) / Max.500 KPPS(5V) |
| LED indicator | Tri-color status (red / yellow / green) | Tri-color status (red / yellow / green) | Tri-color status (red / yellow / green) |
| Cable Length | Standard 3 / 5m | Standard 3 / 5m | Standard 3 / 5m |
| Operating Environment | 0–40℃; <85% RH (non-condensing); Avoid strong light sources, UV exposure, and corrosive gases | ||
| Storage Environment | –10 to 65℃; <90% RH (non-condensing) | ||
| Dimensions | 190*77*48.75 mm | 190*77*48.75 mm | 190*77*48.75 mm |
| Weight | 0.4 kg | 0.4 kg | 0.4 kg |
| Protection Class | IP20 | IP20 | IP20 |
| Cooling | Natural convection | Natural convection | Natural convection |
