RM-CEM
Modular Micro Controller

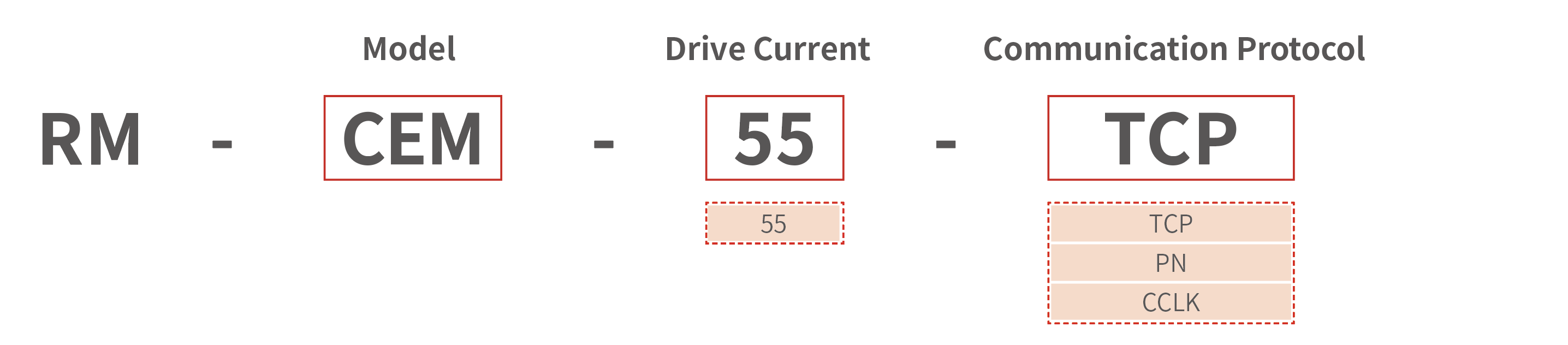

Model Guide
Product Specifications
RM-CEM
Modular Micro Controller
| Product Image |  | |  |
|---|---|---|---|
| Model | RM-CEM-55-TCP | RM-CEM-55-PN | RM-CEM-55-CCLK |
| Rated Voltage | 2-5.5A | 2-5.5A | 2-5.5A |
| Drive Current | DC 24V ±10% | DC 24V ±10% | DC 24V ±10% |
| Dimensions | 116*99*33 mm | 116*99*33 mm | 116*99*33 mm |
| Weight | 0.18 kg | 0.18 kg | 0.18 kg |
| Cable Length | Standard 3m / 5m | Standard 3m / 5m | Standard 3m / 5m |
| LED indicator | Tri-color status (red / yellow / green) | Tri-color status (red / yellow / green) | Tri-color status (red / yellow / green) |
| I/O Control | N/A | N/A | N/A |
| Pulse Control | N/A | N/A | N/A |
| Bus Control | Modbus TCP; Modbus RTU | PROFINET; Modbus RTU | CC-Link; Modbus RTU |
| Controlled Axes | Single-axis | Single-axis | Single-axis |
| Operating Environment | 0–40℃; <85% RH (non-condensing); Avoid strong light sources, UV exposure, and corrosive gases | ||
| Storage Environment | –10 to 65℃; <90% RH (non-condensing) | ||
| Protection Class | IP20 | IP20 | IP20 |
| Cooling | Natural convection | Natural convection | Natural convection |
