RM-CEP
Drive-and-control Integrated Controller

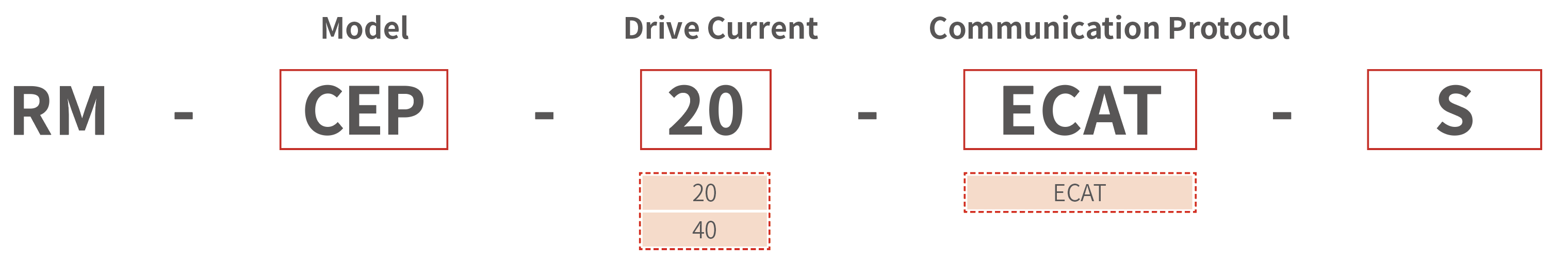

Model Guide
Product Specifications
RM-CEP
Drive-and-control Integrated Controller
| Product Image |  | |
|---|---|---|
| Model | RM-CEP-A-ECAT-S | |
| Dimensions | 190*36*80 mm | |
| Weight | 0.323 kg | |
| Cable Length | Standard 3m / 5m | |
| Bus Control | Modbus RTU; EtherCAT | |
| I/O Control | Support | |
| I/O Interface | Optocoupler isolation 4 IN/ 4 OUT Supports PNP, NPN | |
| Pulse Control | Differential Pulse | |
| Controlled Axes | Single-axis | |
| A | 20 | 40 |
| Drive Current | 2A | 4A |
| Rated Voltage | DC 24V ±10% | |
| Operating Environment | 0–40℃; <85% RH (non-condensing); | |
| Avoid strong light sources, UV exposure, and corrosive gases | ||
| Storage Environment | –10 to 65℃; <90% RH (non-condensing) | |
| Protection Class | IP20 | |
| Cooling | Natural convection | |
