RM-PVCS
Direct-drive Micro Platform Type Actuator
High-Speed and Precise | Soft Pushing | Long Service Life

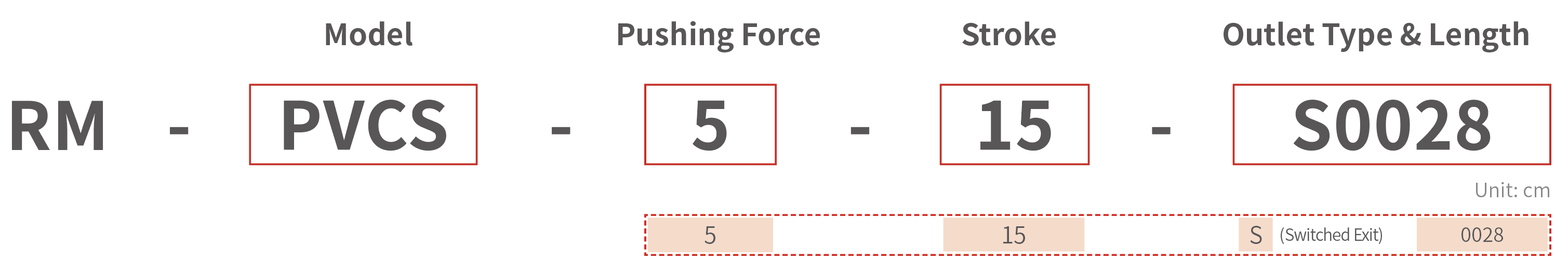

Model Guide
Product Specifications
RM-PVCS
Direct-drive Micro Platform-type Actuator
| Product Image |  |
|---|---|
| Model | RM-PVCS-5-15 |
| Stroke | 15 mm |
| Weight | 1.1 kg |
| Dimensions | 147*81*45 mm |
| Continuous Force1 | 5 N |
| Peak Force1 | 18 N |
| Force Constant | 2.85 N/A |
| Repeatability | ±6 μm |
| Linear Travel Resolution | 0.5 μm |
| Max. frequency | 18 Hz |
| Z-axis Anti-drop Protection | Constant Force Spring Reset |
| Compatible Controllers | RM-CEU; RM-CEM |
| Bus Protocols | RM-CEU supports: EtherCAT; Modbus RTU; I/O RM-CEM supports: Modbus TCP; PROFINET; CC-Link |
| I/O Interface | See controller specs |
| Rated Current | 2.1A |
| Operating Voltage | 24V |
| Cable Length | 3m |
| Operating Environment | 0~40℃, < 85%RH |
| Protection Class | IP40 |
Notes
- 1. The data is sourced from the actual test results in the 25°C laboratory.
