RM-RPLA
Folding Platform-type Linear Actuator
Fast Response Speed | High Rigidity | High Repeat Accuracy | Adaptive Pushing

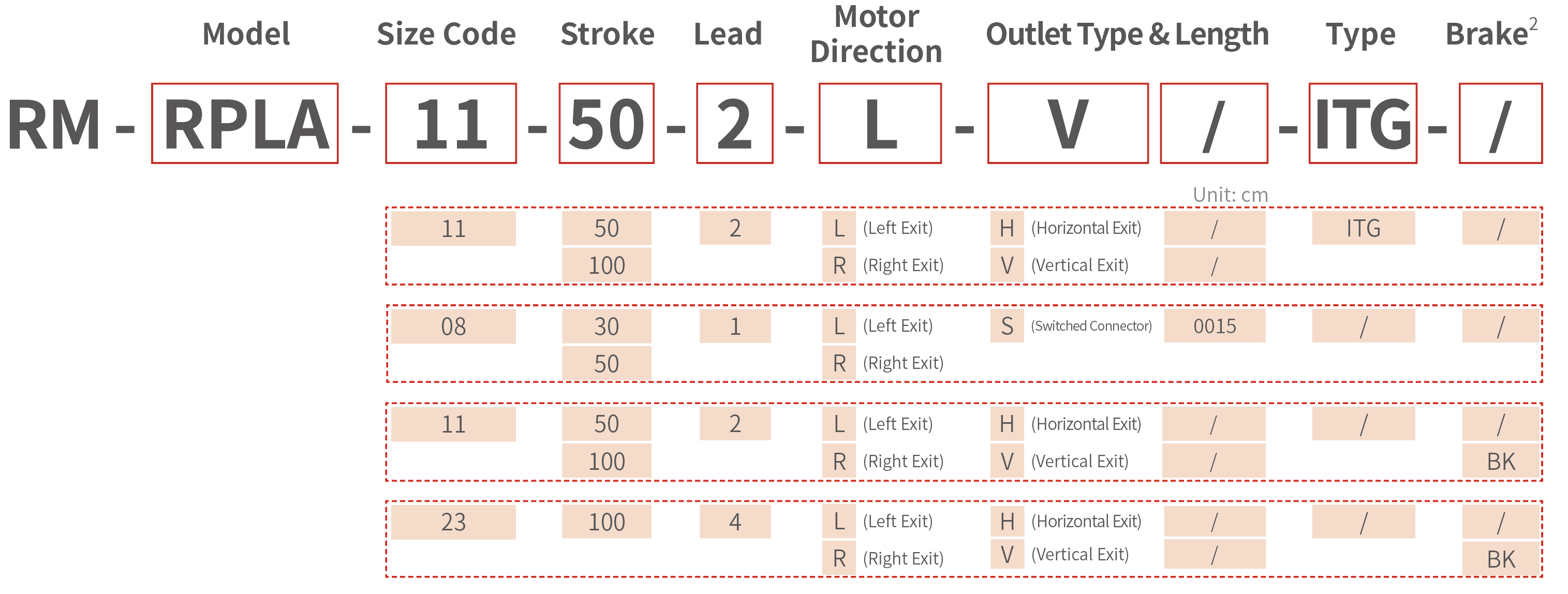

Model Guide
Product Specifications
RM-RPLA-08
Folding Platform-type Linear Actuator
| Product Image |  |  |
|---|---|---|
| Model | RM-RPLA-08-30-1 | RM-RPLA-08-50-1 |
| Size Code | 8 | 8 |
| Weight | 0.4 kg | 0.6 kg |
| Dimensions | 93*53*44 mm | 113*53*44 mm |
| Stroke | 30 mm | 50 mm |
| Lead | 1 mm | 1 mm |
| Max. speed | 50 mm/s | 50 mm/s |
| Max. pushing Force1 | 55 N | 55 N |
| Max. Load Mass (Horizontal) | 2 kg | 2 kg |
| Max. Load Mass (Vertical) | 1 kg | 1 kg |
| Repeatability | ±0.02 mm | ±0.02 mm |
| Allowable Moment MP | 1.9 N.m | 1.9 N.m |
| Allowable Moment MR | 3.0 N.m | 3.0 N.m |
| Allowable Moment MY | 1.9 N.m | 1.9 N.m |
| Compatible Controllers | RM-C-20; RM-CEP-20; RM-CEMS-20 | RM-C-20; RM-CEP-20; RM-CEMS-20 |
| Bus Protocols | EtherCAT; Modbus TCP; PROFINET;Modbus RTU; I/O（See controller quick selection index） | EtherCAT; Modbus TCP; PROFINET;Modbus RTU; I/O（See controller quick selection index） |
| I/O Interface | See controller specs | See controller specs |
| Operating Voltage | DC 24V ±10% | DC 24V ±10% |
| Rated Current | 2A | 2A |
| Operating Environment | 0~40℃, < 85%RH | 0~40℃, < 85%RH |
| Protection Class | IP40 | IP40 |
RM-RPLA-11-50/100
Folding Platform-type Linear Actuator
| Product Image |  |  | | |
|---|---|---|---|---|
| Model | RM-RPLA-11-50-2-ITG | RM-RPLA-11-100-2-ITG | RM-RPLA-11-50-2 | RM-RPLA-11-100-2 |
| Size Code | 11 | 11 | 11 | 11 |
| Weight | 0.9 kg | 1.1 kg | 0.9 kg | 1.1 kg |
| Dimensions | 136*73*50.5 mm | 186*73*50.5 mm | 136*73*50.5 mm | 186*73*50.5 mm |
| Stroke | 50 mm | 100 mm | 50 mm | 100 mm |
| Lead | 2 mm | 2 mm | 2 mm | 2 mm |
| Max. speed | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s |
| Max. pushing Force1 | 300 N | 300 N | 300 N | 300 N |
| Max. Load Mass (Horizontal) | 3 kg | 3 kg | 3 kg | 3 kg |
| Max. Load Mass (Vertical) | 1.5 kg | 1.5 kg | 1.5 kg | 1.5 kg |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Allowable Moment MP | 4.0 N.m | 4.0 N.m | 4.0 N.m | 4.0 N.m |
| Allowable Moment MR | 7.9 N.m | 7.9 N.m | 7.9 N.m | 7.9 N.m |
| Allowable Moments MY | 5.8 N.m | 5.8 N.m | 5.8 N.m | 5.8 N.m |
| Compatible Controllers | Built-in Controller | Built-in Controller | RM-C-20; RM-CEP-20; RM-CEMS-20 | RM-C-20; RM-CEP-20; RM-CEMS-20 |
| Bus Protocols | Modbus RTU; I/O | Modbus RTU; I/O | EtherCAT; Modbus TCP; PROFINET; Modbus RTU; I/O（See controller quick selection index） | |
| I/O Interface | 3 IN / 3 OUT (NPN) | 3 IN / 3 OUT (NPN) | See controller specs | See controller specs |
| Operating Voltage | DC 24V ±10% | DC 24V ±10% | DC 24V ±10% | DC 24V ±10% |
| Rated Current | 2A | 2A | 2A | 2A |
| Operating Environment | 0~40℃, < 85%RH | 0~40℃, < 85%RH | 0~40℃, < 85%RH | 0~40℃, < 85%RH |
| Protection Class | IP40 | IP40 | IP40 | IP40 |
RM-RPLA-23-100
Folding Platform-type Linear Actuator
| Product Image |  |
|---|---|
| Model | RM-RPLA-23-100-4 |
| Size Code | 23 |
| Weight | 6.5 kg |
| Dimensions | 261*153.6*95.5 mm |
| Stroke | 100 mm |
| Lead | 4 mm |
| Max. speed | 115 mm/s |
| Max. pushing Force1 | 2000 N |
| Max. Load Mass (Horizontal) | 50 kg |
| Max. Load Mass (Vertical) | 30 kg |
| Repeatability | ±0.03 mm |
| Allowable Moment MP | 25 N.m |
| Allowable Moment MR | 17 N.m |
| Allowable Moments MY | 17 N.m |
| Compatible Controllers | RM-C-60;RM-CEP-60;RM-CEMS |
| Bus Protocols | EtherCAT; Modbus TCP; PROFINET; Modbus RTU; I/O （See controller quick selection index） |
| I/O Interface | See controller specs |
| Operating Voltage | DC 24V ±10% |
| Rated Current | 4.2A |
| Operating Environment | 0~40℃, < 85%RH |
| Protection Class | IP50 |
Notes
- 1. The data is sourced from the actual test results in the 25°C laboratory.
- 2. If you require a product with a brake, please contact your sales representative for a drawing.
- 3. The drawings provided in this Catalog are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.

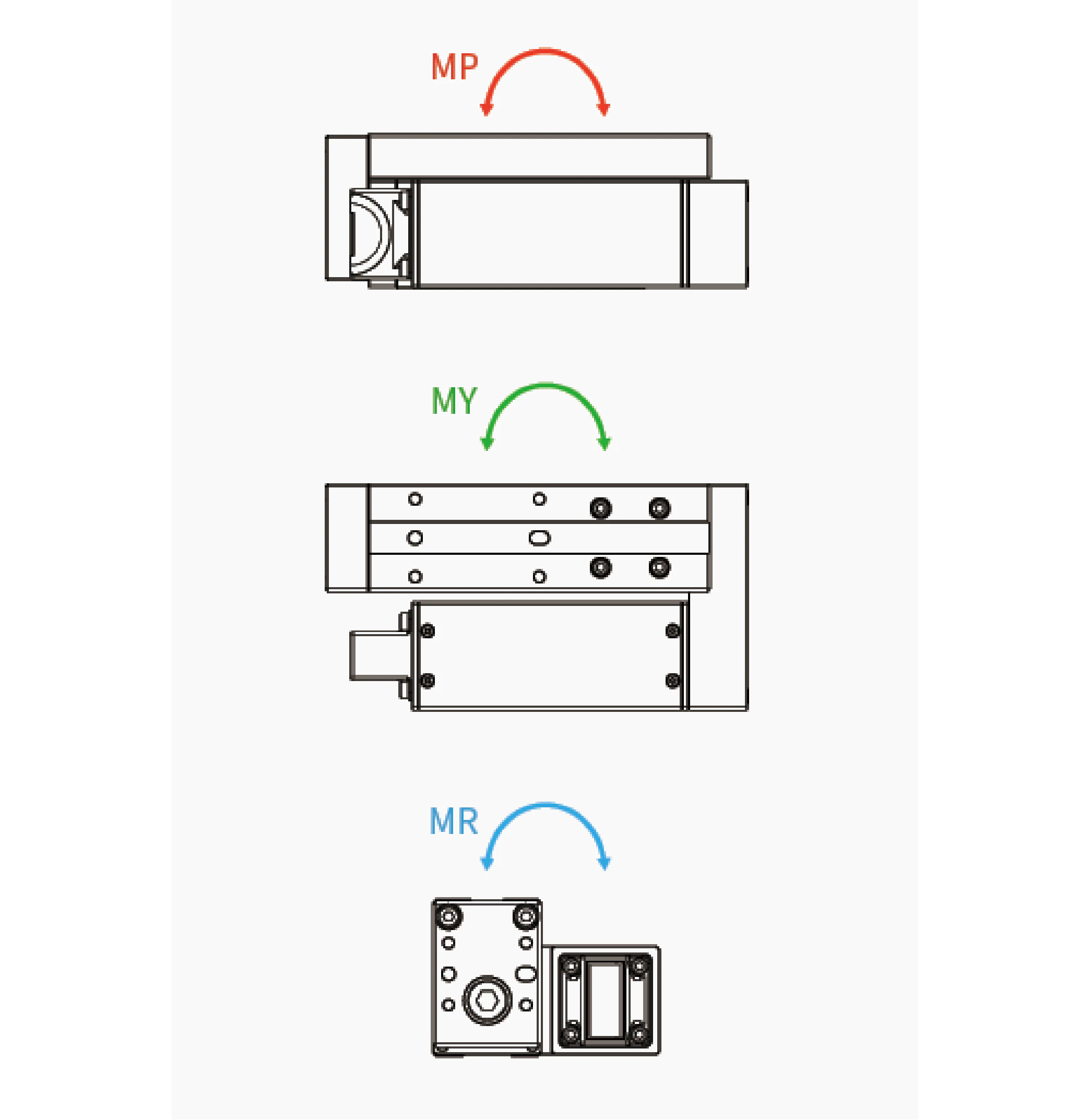

Moment Direction
