RM-GBTD
Tri-proof Gripper
IP67 Protection Level | Waterproof, Dust-proof, Anti-corrosion, Anti-debris | Speedy Opening and Closing

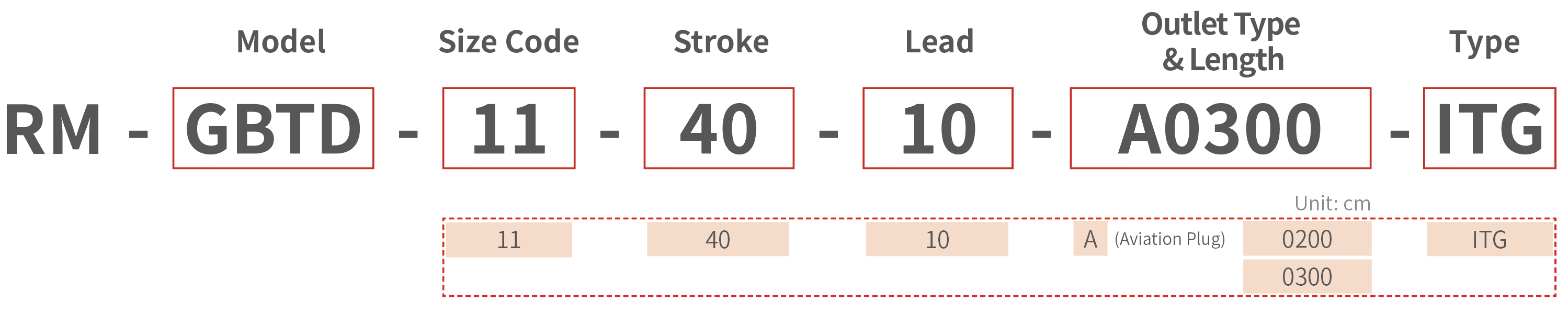

Model Guide
Product Specifications
RM-GBTD-ITG
Tri-proof Gripper
| Product Image |  |
|---|---|
| Model | RM-GBTD-11-40-10-ITG |
| Size Code | 11 |
| Weight | 1.3 kg |
| Dimensions | 94*46*122 mm |
| Stroke | 40 mm |
| Max. Gripping Force1 | 45 N |
| Max. speed | 250 mm/s |
| Repeatability | ±0.02 mm |
| Max. Open/Close Time | 0.3s / 0.3s |
| Allowable Moment MP | 2.5 N.m |
| Allowable Moment MR | 2.5 N.m |
| Allowable Moment MY | 3.0 N.m |
| Compatible Controllers | Built-in Controller |
| Communication Protocols | Modbus RTU; I/O |
| I/O Interface | 3 IN / 3 OUT (NPN) |
| Operating Voltage | DC 24V ±10% |
| Rated Current | 2A |
| Operating Environment | 0~40℃, < 85%RH |
| Protection Class | IP67 |
Notes
- 1. The data is sourced from the actual test results in the 25°C laboratory.
- 2. The drawings provided in this Catalog are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.

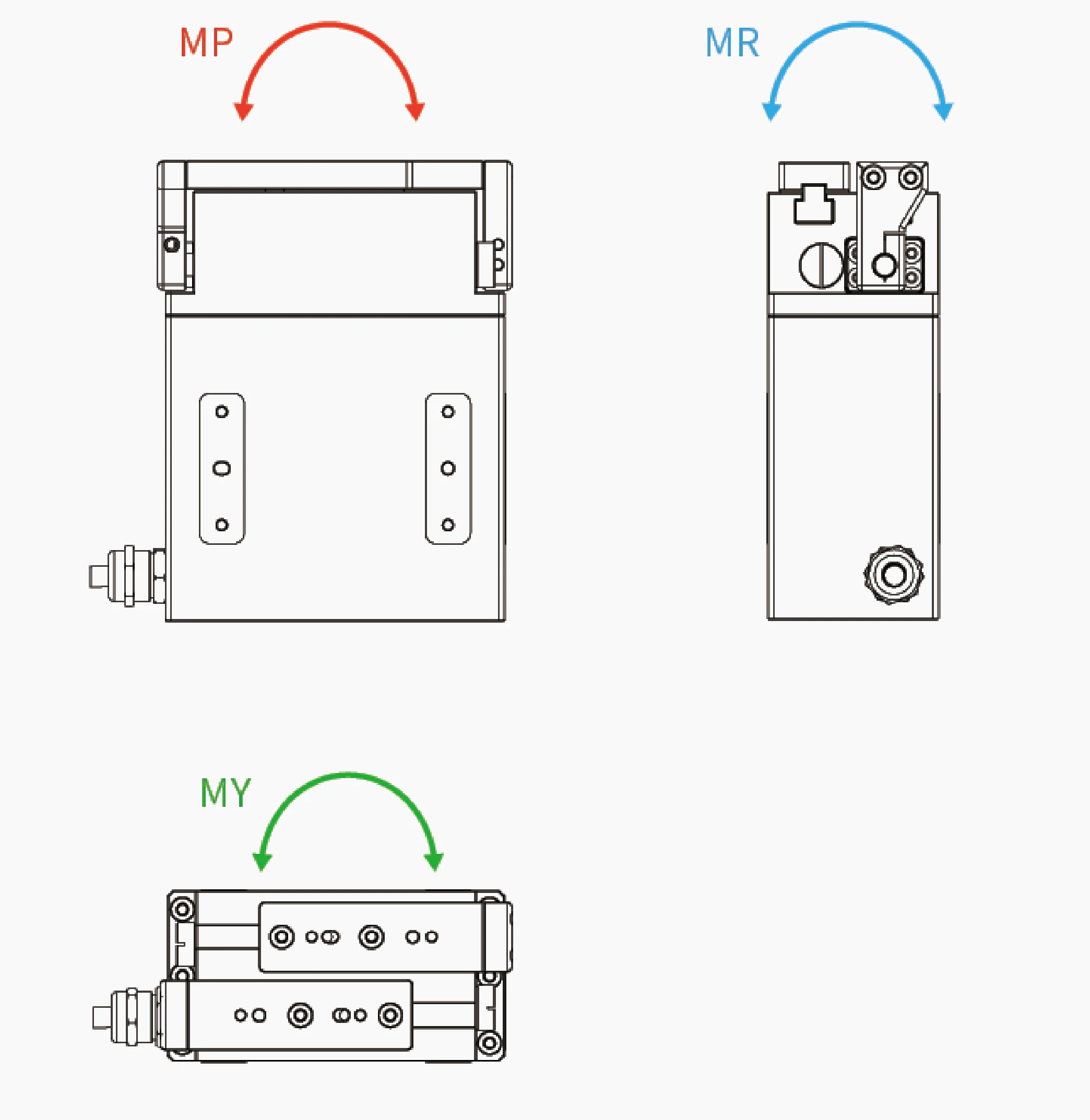

Moment Direction
