RM-CEUF
SoftForce® Drive-and-control Integrated Controller

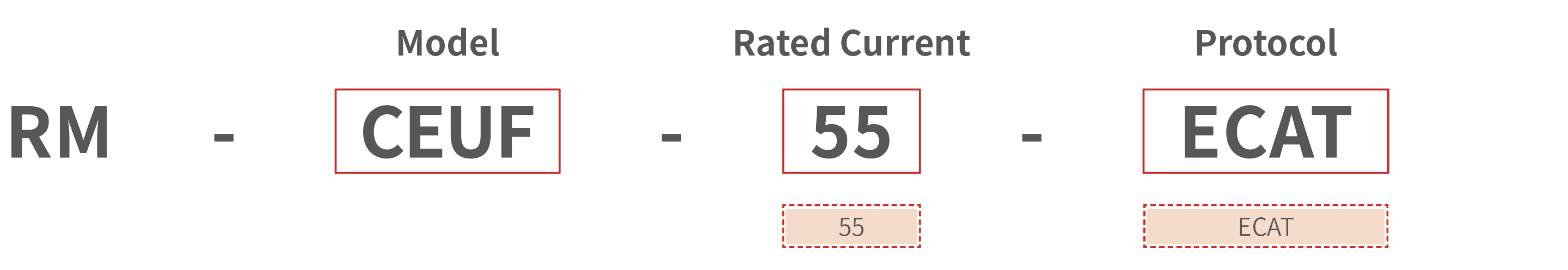

Model Guide
Product Specifications
| Product Image |  |
|---|---|
| Model | RM-CEUF-55-ECAT |
| Rated Current | 2-5.5 A |
| Operating Voltage | DC24 ±10% V |
| Dimensions | 190*36*81.9 mm |
| Weight | 0.331 kg |
| Cable length | Standard 3m / 5m |
| LED indicator | Tri-color status (red / yellow / green) |
| Force sensor interface | SoftForce®Gen3 dedicated interface |
| I/O control | Support |
| Pulse control | Not Support |
| Bus protocol | Modbus RTU; EtherCAT |
| Controlled axes | Single-axis |
| I/O interface | 1）Optocoupler isolation 2）4 IN / 4 OUT (varies by model) 3）Supports PNP, NPN |
| Operating Environment | 1）0–40°C; <85% RH (non-condensing); 2）Avoid strong light sources, UV exposure, and corrosive gases |
| Storage Environment | –10 to 65°C; <90% RH (non-condensing) |
| Protection class | IP20 |
| Cooling | Natural convection |
