RM-PLA-HF
SoftForce® Straight Platform Linear Actuator

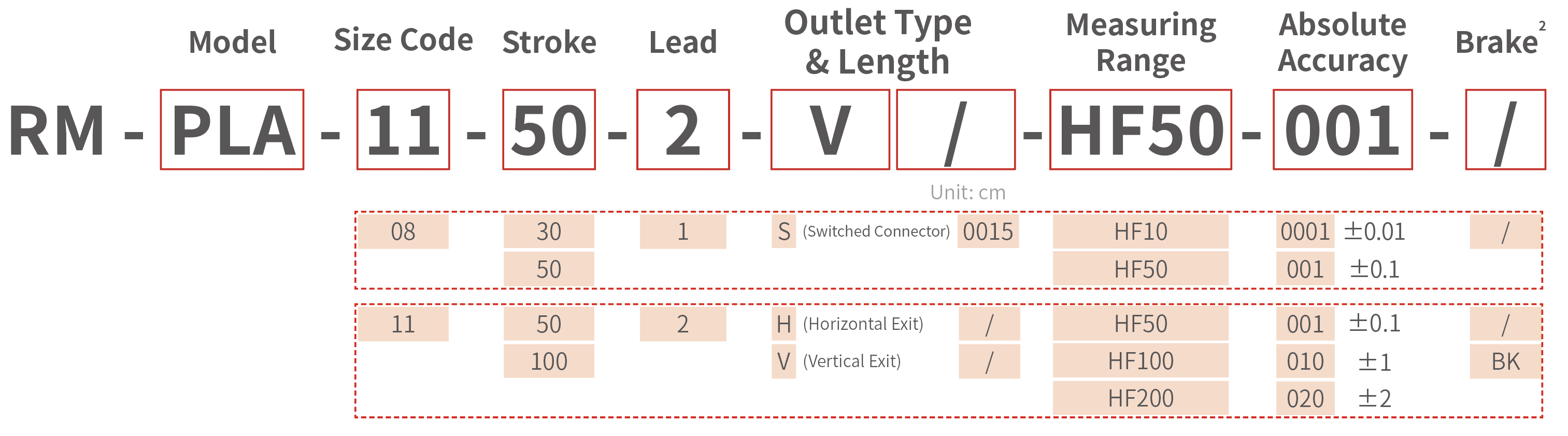

Model Guide
Product Specifications
| Product Image |  |  |  |  |
|---|---|---|---|---|
| Model | RM-PLA-08-30-1-HF | RM-PLA-08-50-1-HF | RM-PLA-11-50-2-HF | RM-PLA-11-100-2-HF |
| Size Code | 08 | 08 | 11 | 11 |
| Weight | 0.5 kg | 0.7 kg | 1.0 kg | 1.2 kg |
| Dimensions | 193*25*44 mm | 213*25*44 mm | 300*37.5*50.5 mm | 350*37.5*50.5 mm |
| Stroke | 30 mm | 50 mm | 50 mm | 100 mm |
| Lead | 1 mm | 1 mm | 2 mm | 2 mm |
| Max. Speed | 50 mm/s | 50 mm/s | 100 mm/s | 100 mm/s |
| Max. Load Mass (Horizontal) | 0.5 kg | 0.5 kg | 0.5 kg | 0.5 kg |
| Max. Load Mass (Vertical) | 1 kg | 1 kg | 1.5 kg | 1.5 kg |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Compatible Controllers | RM-CEPF-20; RM-CEMSF-20 | RM-CEPF-20; RM-CEMSF-20 | RM-CEPF-20; RM-CEMSF-20 | RM-CEPF-20; RM-CEMSF-20 |
| Bus Protocols | RM-CEPF controller supports: EtherCAT; Modbus RTU; I/ORM-CEMSF controller supports: Modbus TCP; PROFINET; CC-LINK; Modbus RTU | |||
| Operating Voltage | DC24 ±10% V | DC24 ±10% V | DC24 ±10% V | DC24 ±10% V |
| Rated Current | 2 A | 2 A | 2 A | 2 A |
| Operating Environment | 0–40°C, <85% RH (non-condensing) | |||
| Protection Class | IP40 | IP40 | IP40 | IP40 |
| Protection Class IP | IP40 | IP40 | IP40 | IP40 |
Closed-Loop Output Range Table for Different Sensor Ranges
| Size Code | Stroke | Closed-loop Output Range | |||
|---|---|---|---|---|---|
| HF10-0001 | HF50-001 | HF100-010 | HF200-020 | ||
| 08 | 30, 50 mm | 0.02 ～ 9.98 N | 0.2 ~ 38.5 N | / | / |
| 11 | 50, 100 mm | / | 0.2 ~ 49.8 N | 1.1 ~ 98.9 N | 2.1 ~ 197.9 N |
Notes
- 1. The drawings provided in this Catalog are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
- 2. If you require a product with a brake, please contact your sales representative for a drawing.
